当前位置: 首页 » 供应 » 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机

供应压路机骏马JMD808H全液压双钢轮振动振荡压路机

江苏骏马压路机有限公司 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机
江苏骏马压路机有限公司 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机江苏骏马压路机有限公司 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机江苏骏马压路机有限公司 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机
产品/服务: 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机
品 牌: 江苏骏马
型 号: JMD808
规 格: 8 t
计量单位: 台
单 价: 面议  江苏骏马压路机有限公司 供应压路机骏马JMD808H全液压双钢轮振动振荡压路机 询价单
最小起订量:  1
供货总量: 50
发货期限: 自买家付款之日起 3 天内发货
供应商信息
  • 江苏骏马压路机有限公司
  • 联系人骏马压路机(先生)
  • 邮件18861023008@rollerco.com.cn
  • 联系手机 4008359399
  • 电话0523-84508238
  • 地址江苏省靖江市骥江西路288号


收藏此信息 产品详细说明

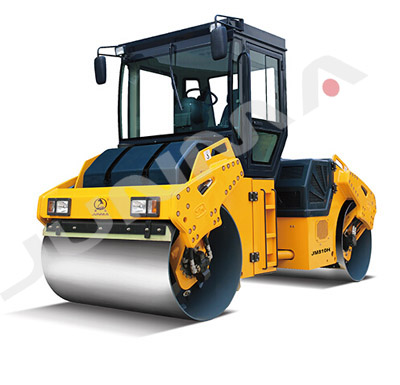

JMD808H全液压双钢轮振动振荡压路机

适用范围:
Applications
高等级公路沥青面层的压实,也适用于城市道路、城际公路等一般路面沥青面层的压实,振动振荡机更适用于桥面等不宜采用振动压实场地的沥青面层的压实和修补
Compacting the asphalt pavement of highway, and general road base of city road, inter-city road and etc.
The vibratory oscillatory roller is more suitable for compacting and repairing of bridge surface asphalt pavement which is unfit to compact by vibratory roller.

性能特点:
Main features
1
、驱动和振动系统均选用国际著名品牌进口液压元件;
2
、液压双轮驱动,两档无极变速;振动机液压双轮振动,双频双幅;振动振荡机前轮振动振荡,后轮双频双幅振动;电控延时起振和转换,液压铰接转向,操作轻便;
3
、前后钢轮均可单独起振,也可同时起振,适应不同工况,节能高效;
4
、独特叉脚支撑设计,视野盲区较小,可完全贴近路肩压实;
5
、驾驶室宽敞明亮,操作台和座椅可左右旋转90度,便于边缘压实;
6
、可设置冷暖空调,供用户选配;
7
、两侧机罩可大角度开启,发动机及液压元件充分暴露,维修保养触手可得;
8
、两大防腐洒水箱连通设计,容量大,电控压力喷洒水系统,可实现间歇 式喷洒。
1
Drive system and vibration system adopt the international reputed brand imported hydraulic components;
2
Hydraulic double drum drive, two range infinitely various speed.    Vibratory roller-hydraulic double drum vibration, double frequency and amplitude.                Vibration oscillatory roller-front-rear vibration oscillation, rear drum double frequency and amplitude vibration.
Starting vibration and converting by electric control delay with simple operation.
Hydraulic steering with articulated frame.
3
Both drums vibrate separately or simultaneously, to adapt to different working condition, energy-saving, high-efficiency;
4
Special design of the fork support to compact the road shoulder fully closed, with good visions;
5
The cabin is spacious and bright, operation station and operation seat can rotate around 90° conveniently for curb compaction;
6
An air-conditioner is optional for customers;
7
The covers on both sides can be turned up in a big angel, the engine and hydraulic components are fully exposed, which are more convenient for maintenance;
8
Connective design for two anti-corrosive sprinkler tanks with large capacity, electric control pressurized sprinkler system, intermittent spraying.

技术参数:

项目

unit

JMD808H

工作质量

kg

8000

压实宽度

mm

1700

振动频率

Hz

42/46

理论振幅

mm

0.75/ 0.35

激振力

kN

82/40

振荡频率

Hz

42

理论荡幅

mm

0.65

激振力矩

kN·m

38

发动机

型号

4BTA3.9-C110

功率

kw

82

整机外形尺寸

mm

4350X1900X3050
